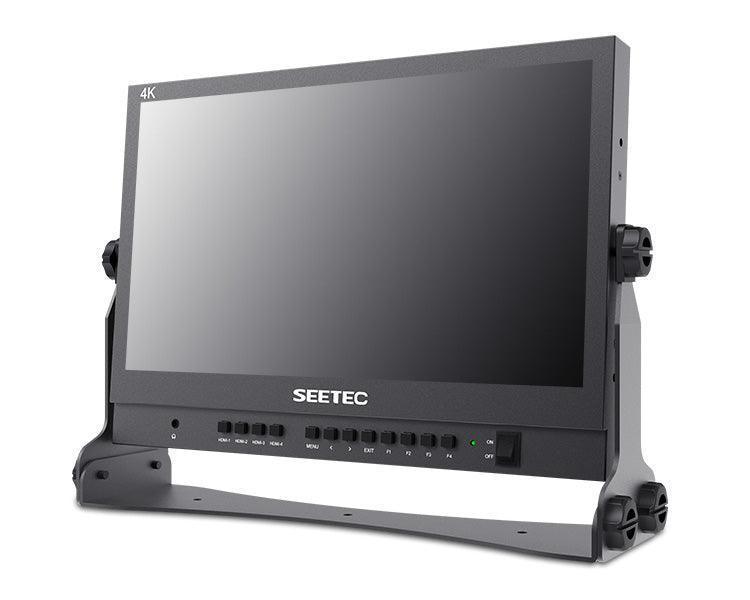

Seetec Atem156 15.6 Inch Live Streaming Broadcast Monitor
Seetec Atem156 15.6 Inch Live Streaming Broadcast Monitor
Stock bas : 9 restant(s)
Impossible de charger la disponibilité du service de retrait

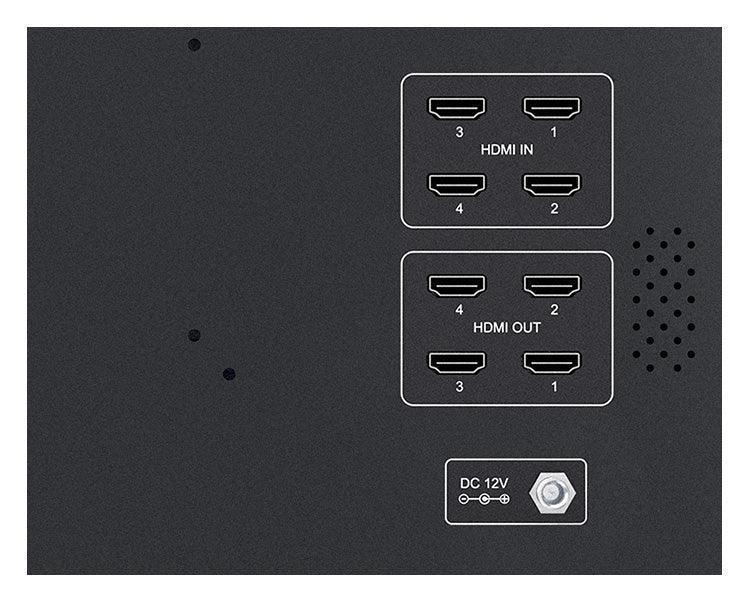

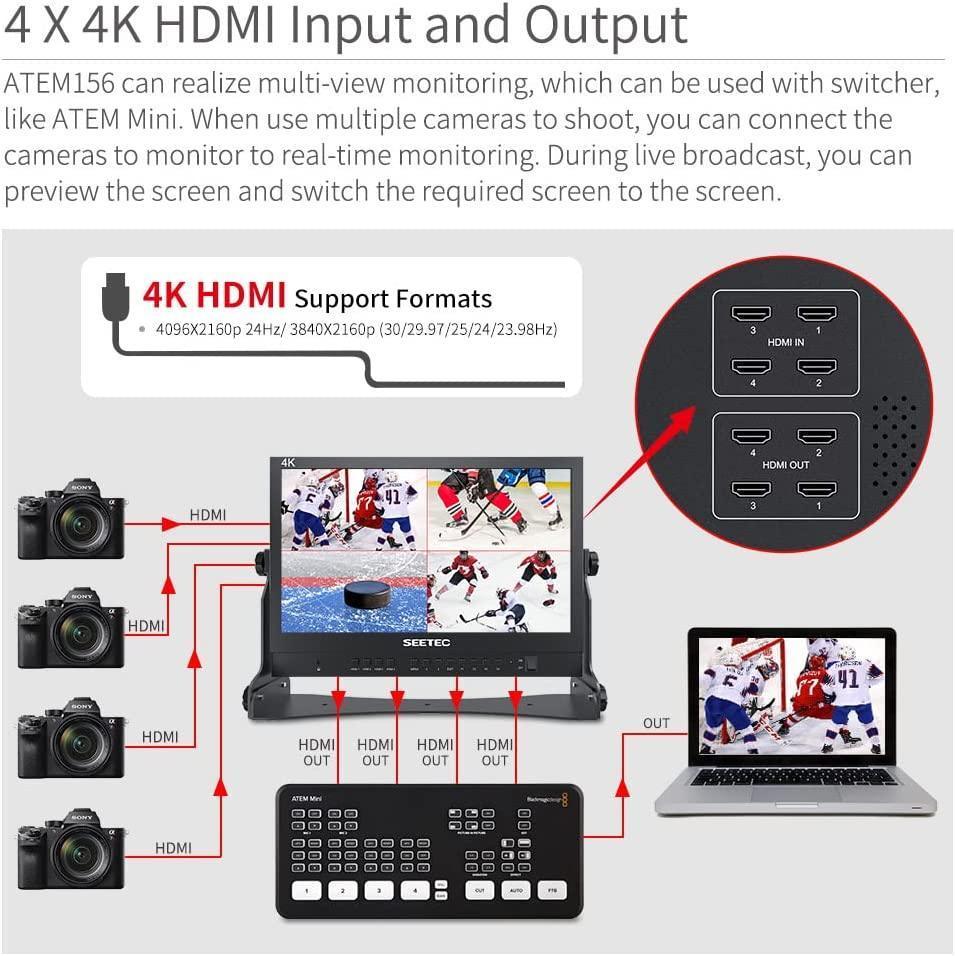

- 【4 X 4K HDMI Input and Output】ATEM156 can realize multi-view monitoring, which can be used with switcher, like ATEM Mini. During live broadcast, you can preview the screen and switch the required screen to the screen.

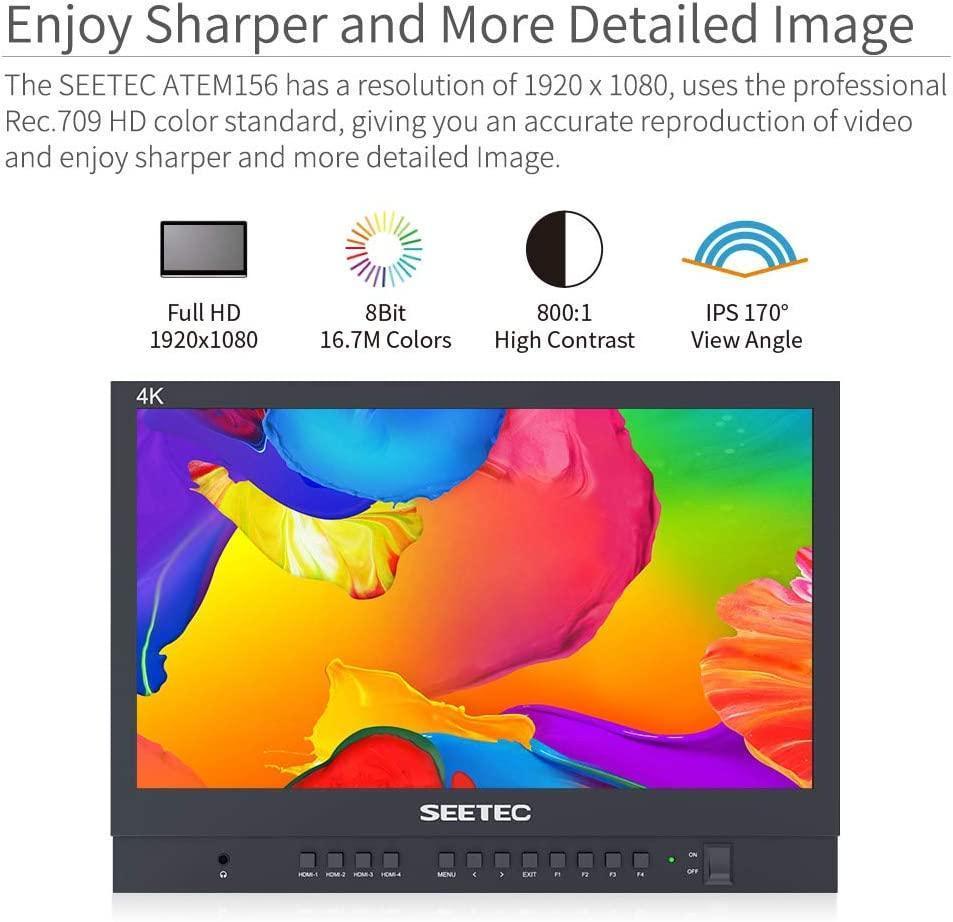

- 【Sharper and More Detailed Image】The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

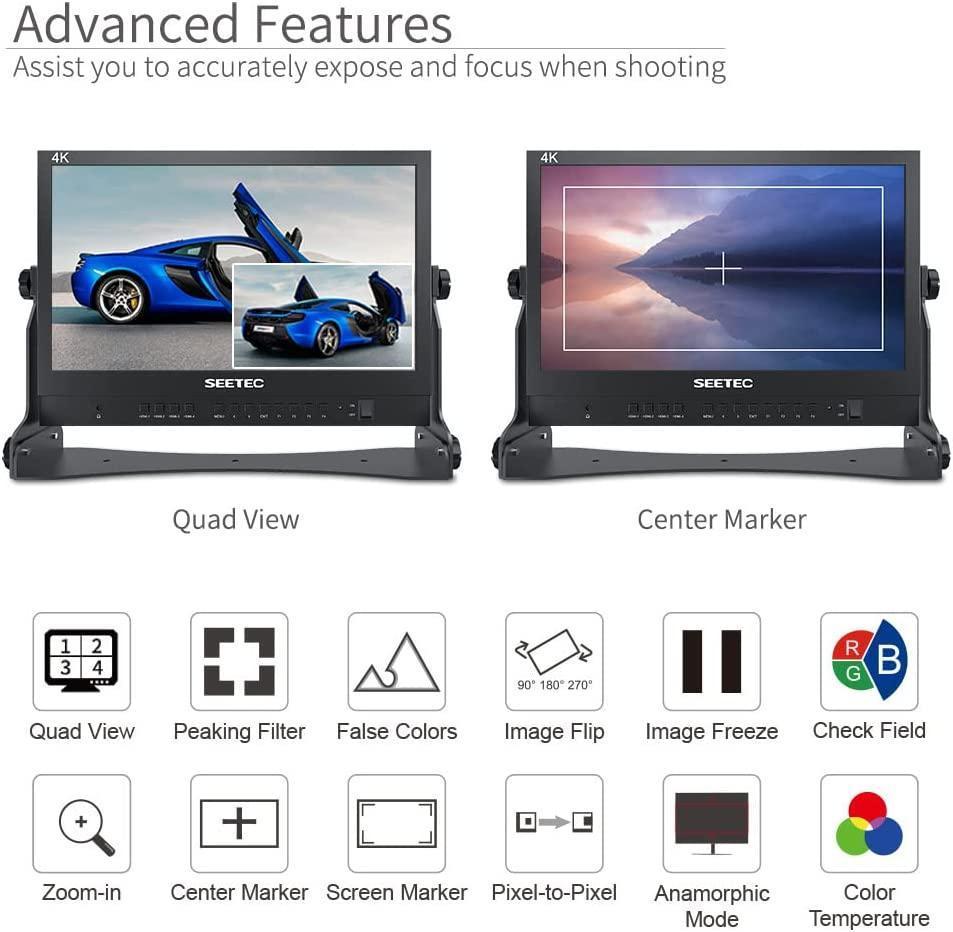

- 【Improve the Shooting Efficiency】SEETEC ATEM156 has set up professional monitoring functions according to the actual needs of pre-shooting and post-production. It contains focus-checking functions, such as Peaking Focus, False Color, and Pixel to Pixel, to assist in getting sharp images.

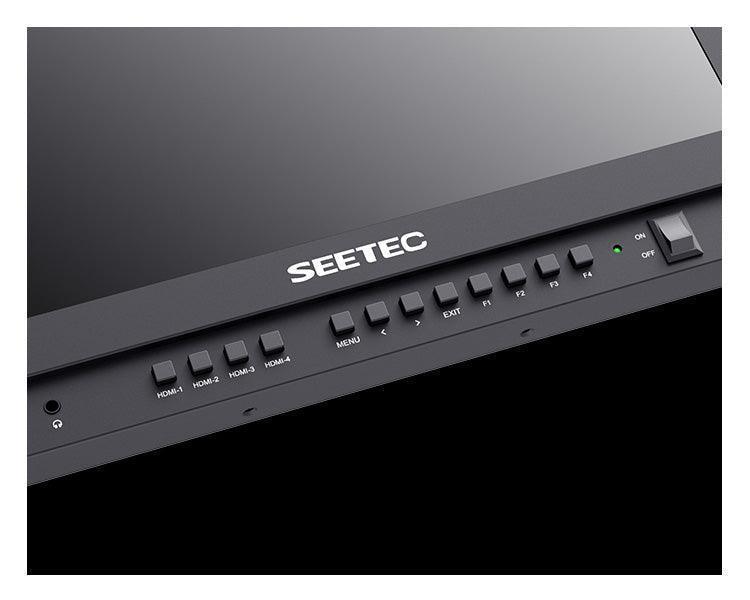

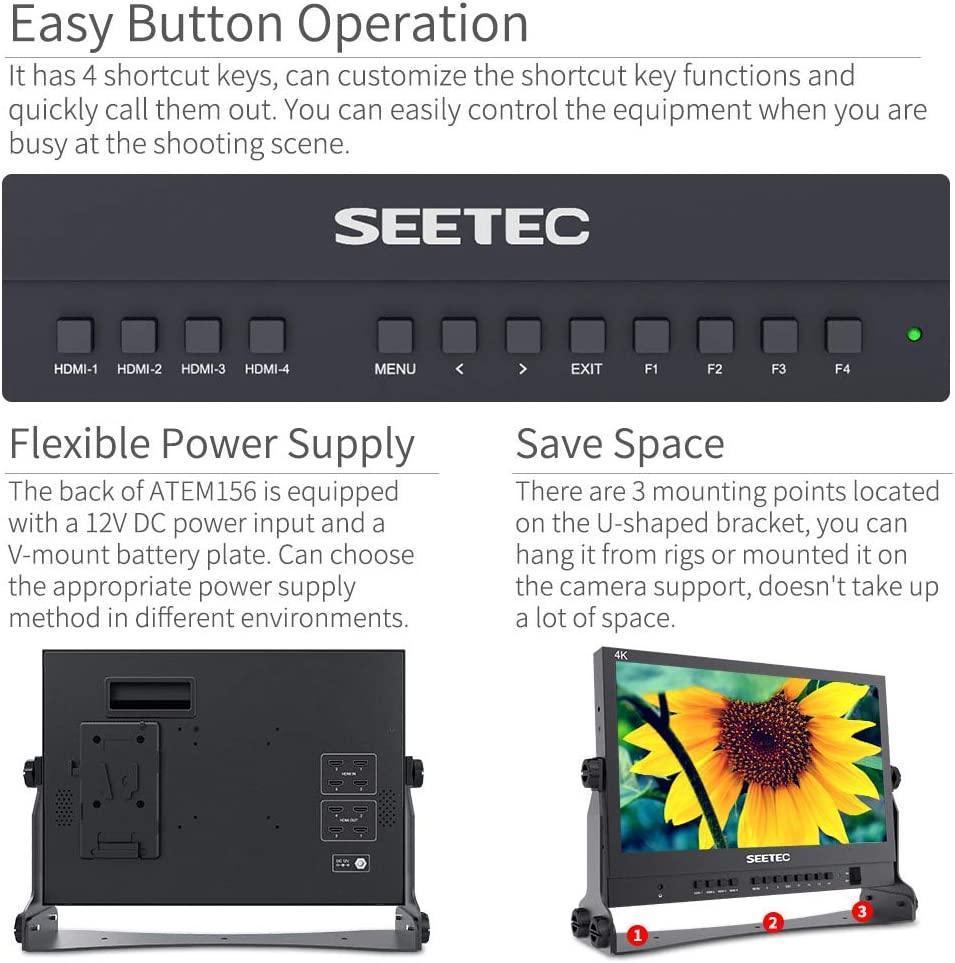

- 【Easy Button Operation】It is equipped with a simple control panel, you can customize the shortcut key functions and quickly call them out. You can use the 12V DC power input and V- mount battery plate to power monitor.

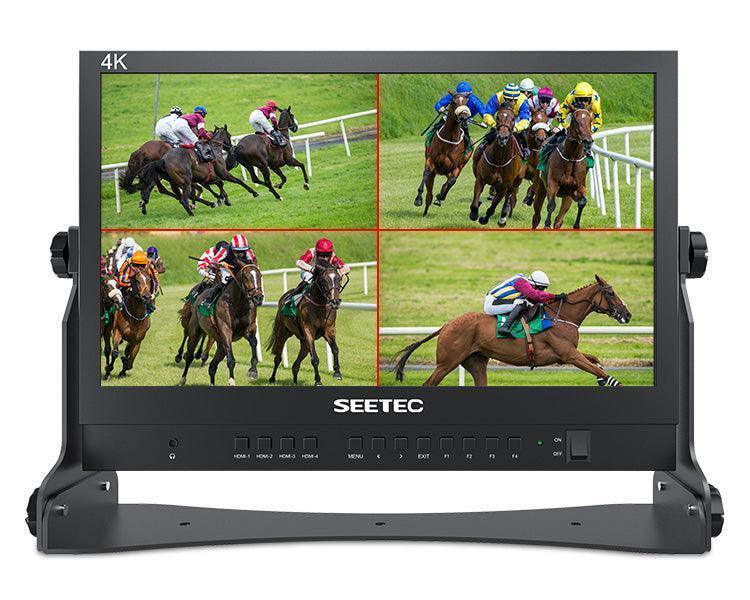

Multiview
Quad View/ Dual View

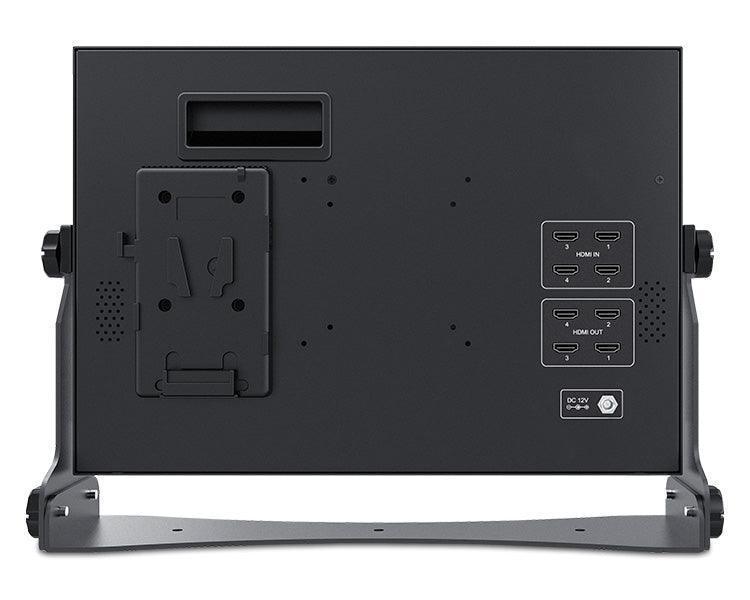

When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156 has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!
True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction
VESA Mount Points
The included VESA mount points mean you don’t have to rack mount ATEM156, as you can use a wide range of computer monitor mounting hardware if you want to mount your broadcast monitor in cubicles, on walls or anywhere you need!
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Display Spec
- Model: ATEM156
- Screen Size: 15.6" IPS
- Color Depth: 16.7M colors (8-bits)
- Resolution: 1920×1080 pixels
- Pixel Pitch: 0.17925 (H) X 0.17925 (V) mm
- Aspect Ratio: 16:9
- Brightness: 250cd/m²
- Contrast Ratio: 800:1
- Backlight: LED
- Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)

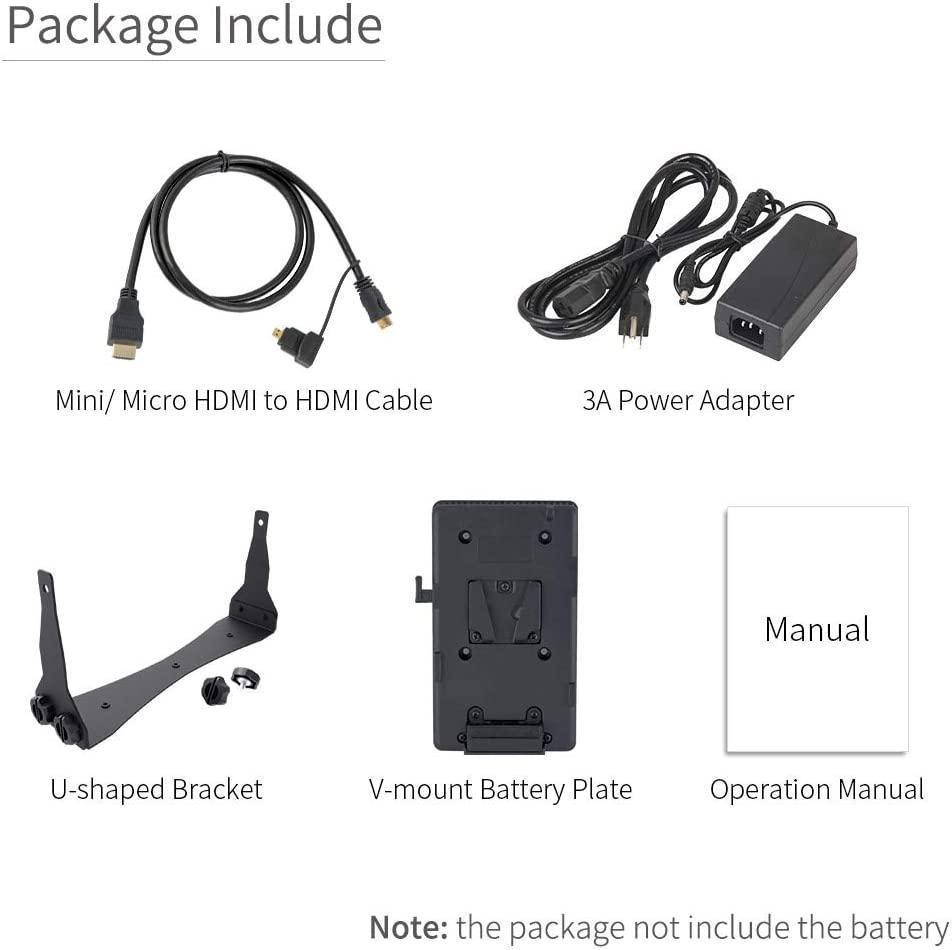

- 1× Mini/ Micro HDMI to HDMI Cable
- 1× V-mount Battery Plate
- 1× 3A 3A Power Adapter
- 1× U-shaped Bracket
- 1× Operation Manual
