Seetec 12G320F 32Inch 4K/8K Broadcast Hdr Monitor
Seetec 12G320F 32Inch 4K/8K Broadcast Hdr Monitor
Regular price
$7,499.00
Regular price
Sale price
$7,499.00
Unit price
per
Shipping calculated at checkout.
50 in stock
Couldn't load pickup availability

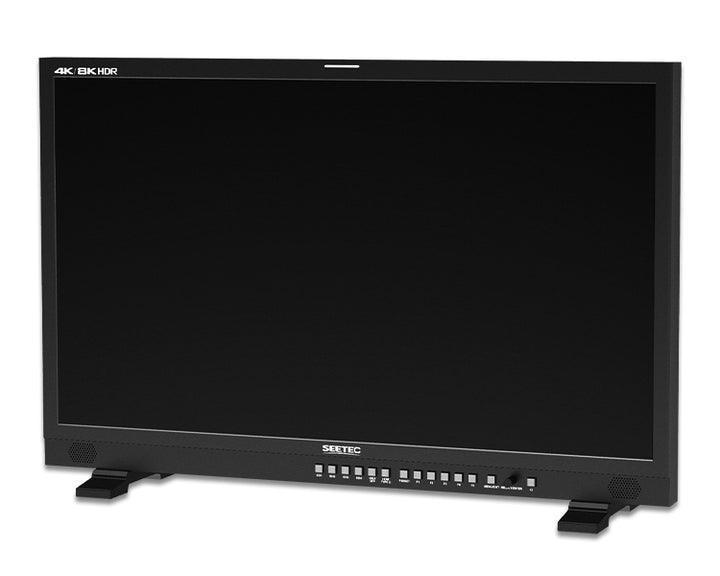

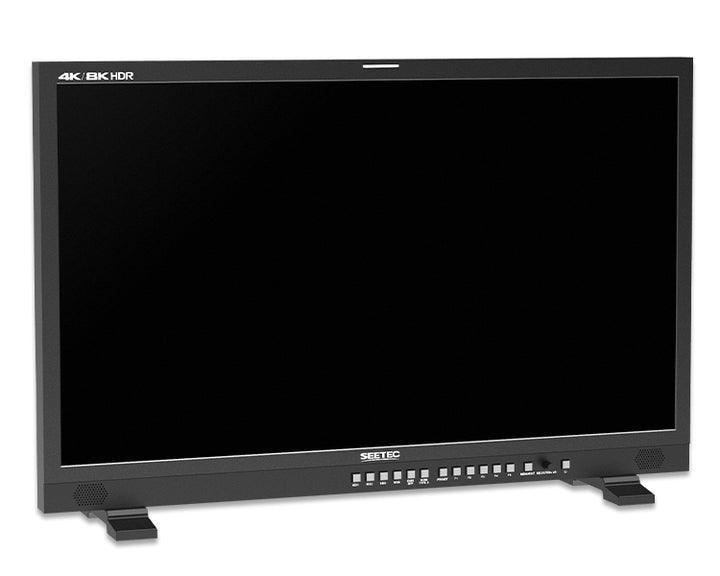

SEETEC 12G320F is a professional film and television production monitor equipped with 4*12G-SDI can support 8K signal input, and presenting you up to 2160p@60 native display. The 32-inch ultra HD IPS panel with the color depth up to 10 bit and a series of aux functions. And featuring the option of 12G-SFP Fiber Optic input connection for Ultra HD monitoring over massive distances! You also can connect your computer to control the monitor via applications. It is widely used in the pre-shooting and post color grading work of broadcast, film and television, and high-end advertising production.
Multiple Screen Modes
Perfect choice for multiple camera monitoring
The monitor supports quad view, Quadview triple side , Quadview triple bottom, PBP, PAP multi display mode for optional, one monitor can satisfy multi-camera monitoring.
Perfect choice for multiple camera monitoring
The monitor supports quad view, Quadview triple side , Quadview triple bottom, PBP, PAP multi display mode for optional, one monitor can satisfy multi-camera monitoring.
SDR and HDR Image Comparison Function
Supports HDR mode/Gamma(EOTF)
The monitor can perform SDR and HDR image comparison monitoring in multi-view mode, supports HLG (1.0,1.1, 1.2, 1.3, 1.4, 1.5) mixed log gamma, ST.2084 Dolby Vision PQ, Sony S-log3 HDR, various common gamma and user Gamma LUT upload.
Supports HDR mode/Gamma(EOTF)
The monitor can perform SDR and HDR image comparison monitoring in multi-view mode, supports HLG (1.0,1.1, 1.2, 1.3, 1.4, 1.5) mixed log gamma, ST.2084 Dolby Vision PQ, Sony S-log3 HDR, various common gamma and user Gamma LUT upload.
Payload ID Automatically Setting
The monitor can read the Payload ID information of the SDI input signal source, automatically select the color gamut, EOTF (PQ or HLG) curve.
The monitor can read the Payload ID information of the SDI input signal source, automatically select the color gamut, EOTF (PQ or HLG) curve.
3D LUT, Recreate Film Looks
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 9 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 8).
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 9 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 8).
Dynamic UMD
TSL3.1/4.0/5.0 Protocol
12G320F supports UMD of TSL 3.1/4.0/5.0 protocol, 8 letters can be displayed for single channel, let the program producer know at a glance which signal source is being switched.
TSL3.1/4.0/5.0 Protocol
12G320F supports UMD of TSL 3.1/4.0/5.0 protocol, 8 letters can be displayed for single channel, let the program producer know at a glance which signal source is being switched.
Three Color Tally Lights
GPI controls Red Tally , Green Tally and Yellow Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
GPI controls Red Tally , Green Tally and Yellow Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
Professional Audio Meters
The monitor can de-embed audio from SDI and HDMI. Support select any 2 channels audio to output via speaker or 3.5mm headphone jack, maximum support 16 channels display. The audio meters can be displayed vertical or horizontal orientation.
The monitor can de-embed audio from SDI and HDMI. Support select any 2 channels audio to output via speaker or 3.5mm headphone jack, maximum support 16 channels display. The audio meters can be displayed vertical or horizontal orientation.
Multi Types Camera Shooting Solution
12G238F comes with 12G-SDI support Single link, Dual link and Quad link inputs, that means you can use a either single input or conjoined inputs to make up your 4K video input signal. This provides the comprehensive workflow for the multiple types of camera to be attached into the monitor depending on the usage and configuration of the video capture environment.
12G238F comes with 12G-SDI support Single link, Dual link and Quad link inputs, that means you can use a either single input or conjoined inputs to make up your 4K video input signal. This provides the comprehensive workflow for the multiple types of camera to be attached into the monitor depending on the usage and configuration of the video capture environment.
Ultra HD Live Broadcast
Provides an immersive audio and visual experience
The 4 channels 12G-SDI of 12G238F can easy support up to 8K signal input, with UHD 3840x2160 large screen, bringing unprecedented smoother rate and unparalleled quality image, provide you an immersive audio and visual experience! It is suitable for various large live broadcast.
Provides an immersive audio and visual experience
The 4 channels 12G-SDI of 12G238F can easy support up to 8K signal input, with UHD 3840x2160 large screen, bringing unprecedented smoother rate and unparalleled quality image, provide you an immersive audio and visual experience! It is suitable for various large live broadcast.
Perfect Multi-camera Monitoring for Film Crew
Multiview mode of 12G238F allows director to monitor multiple cameras in busy film crew without having to connect multiple monitors. Tally is included in monitors so you get red, green or yellow indicate light for preview status indication on the monitor itself. The amazing screen means you can easily check focus and watch for color consistency across all of your cameras. Plus, there’s even an optional fiber connection for Ultra HD monitoring over massive distances!
Multiview mode of 12G238F allows director to monitor multiple cameras in busy film crew without having to connect multiple monitors. Tally is included in monitors so you get red, green or yellow indicate light for preview status indication on the monitor itself. The amazing screen means you can easily check focus and watch for color consistency across all of your cameras. Plus, there’s even an optional fiber connection for Ultra HD monitoring over massive distances!
Color Grading for Post Production
Provides more creation space
The LCD panel of 12G238F has the DCI-P3 wide color gamut in the film industry standard，and the color depth up to 10 bit, presenting perfect color performance, provides colorist with more creation space for color grading.
Provides more creation space
The LCD panel of 12G238F has the DCI-P3 wide color gamut in the film industry standard，and the color depth up to 10 bit, presenting perfect color performance, provides colorist with more creation space for color grading.
Broadcast Control Rooms
As a broadcaster, you need to be ready to work with any kind of video feed that comes in at any time. 12G238F equipped with multiple 12G-SDI interfaces compatible with 6G/3G/HD/SD-SDI video signals, so you will never have to worry about compatibility with the displays in your control room again! In addition, the standard VESA mounting points allow for wall mounting.
As a broadcaster, you need to be ready to work with any kind of video feed that comes in at any time. 12G238F equipped with multiple 12G-SDI interfaces compatible with 6G/3G/HD/SD-SDI video signals, so you will never have to worry about compatibility with the displays in your control room again! In addition, the standard VESA mounting points allow for wall mounting.
Key Features
* 32-inch 3840X2160 ultra HD large screen
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use)
* Supports wide color gamut for broadcast TV and film standards, meet the different needs of photographers for color gamut.
* Mulitple display modes (Quade, Quadview triple side , Quadview triple bottom, PBP, PAP)
* SDR and HDR Image Comparison Function
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Multiple interfaces, meet different needs (4*12G-SDI inputs and outputs, 2*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
* Three Tally color(Red, Yellow, Green)
* Stereo Earphone output, speaker
* VESA standard mounting points support for hang wall installation
Display Spec
| Model | 12G320F |
| Screen Size | 32" IPS |
| Color Depth | 10Bit(1.07B) |
| Resolution | 3840×2160 pixels |
| Pixel pitch | 0.1369(W) x 0.1369(V) mm |
| Aspect Ratio | 16:9/4:3 |
| Brightness | 700cd/m² |
| Contrast Ratio | 1350:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Standard Accessories
1× Power Adapter
1× SDI Cable
1× Mini HDMI Cable
1× V-mount Battery Plate (default to mount on device)
1× Sunshade
1× U-shape Bracket
1× User Manual Manual
1× Power Adapter
1× SDI Cable
1× Mini HDMI Cable
1× V-mount Battery Plate (default to mount on device)
1× Sunshade
1× U-shape Bracket
1× User Manual Manual
