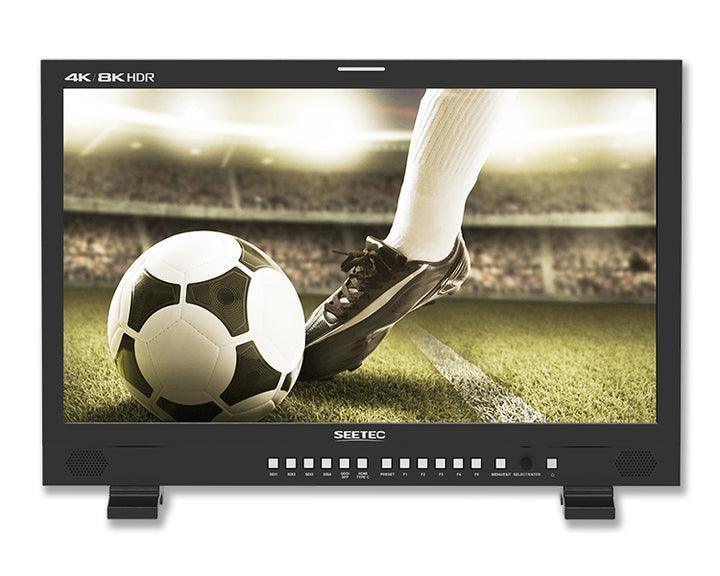

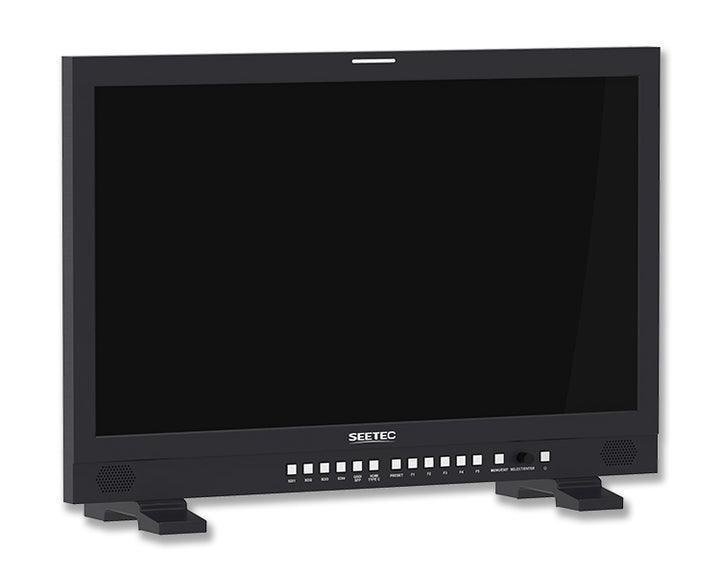

Seetec 12G238F 23.8Inch 4K/8K Broadcast Hdr Monitor

Key Features

* 23.8-inch 3840X2160 ultra HD large screen
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use)
* Supports wide color gamut for broadcast TV and film standards, meet the different needs of photographers for color gamut.
* Mulitple display modes (Quade, Quadview triple side , Quadview triple bottom, PBP, PAP)
* SDR and HDR Image Comparison Function
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

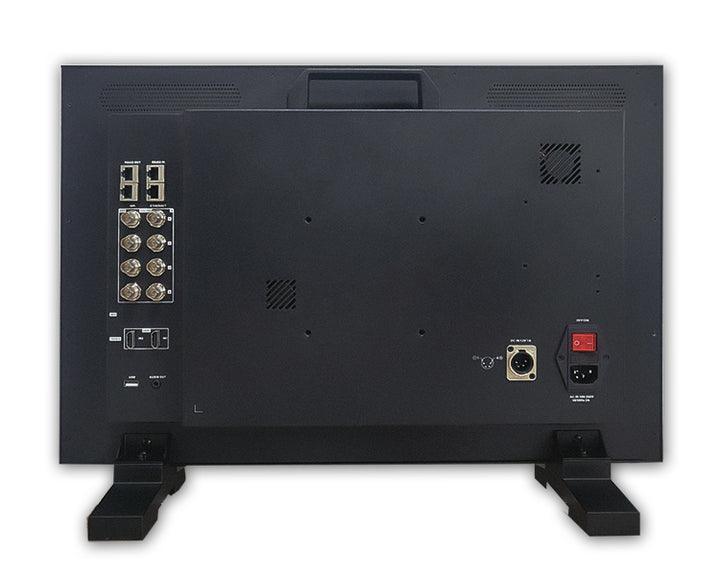

* Multiple interfaces, meet different needs (4*12G-SDI inputs and outputs, 2*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
* Three Tally color(Red, Yellow, Green)
* Stereo Earphone output, speaker
* VESA standard mounting points support for hang wall installation

SEETEC 12G238F is a professional film and television production monitor equipped with 4*12G-SDI can support 8K signal input, and presenting you up to 2160p@60 native display. The 23.8-inch ultra HD IPS panel with the color depth up to 10 bit and a series of aux functions. And featuring the option of 12G-SFP Fiber Optic input connection for Ultra HD monitoring over massive distances! You also can connect your computer to control the monitor via applications. It is widely used in the pre-shooting and post color grading work of broadcast, film and television, and high-end advertising production.

Support Wide Color Gamut for Broadcast TV and Film Standards
The monitor covers 100% Rec.709 and 98% DCI-P3 wide color gamut, presenting rich color. And supports ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, Native and other color gamuts, meet the different needs of photographers for color gamut.

Accurately 3D LUT Color Calibration & Rainbow Color Management Engine
The monitor adopts a high-precision 3D LUT that supports tetrahedral interpolation algorithm, and built-in Rainbow color management engine, ensures the monitor has accurate color reproduction capabilities.

Aluminum Alloy Frame
Rugged and durable, easy to dissipate heat
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation.

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the 12G238F can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly call out menu, etc. to make shooting easier. The backlight button design makes it easier for you to distinguish the current input signal and the shortcut keys used, easy to use even in dimly lit studio or outdoor environments.

VESA Mounting Points
The 12G238F is equipped with 100mm/200mm two VESA mounting sizes, you can easy to hang it on a wall. Flexible mounting for a busy newsroom.
Note: The bracket not included, please purchase separately

12G-SDI /8K/4K HDMI Signal
Bringing you a new visual experience
When you need a higher quality SDI monitoring and 4K or 8K video, then you're going to need a stronger signal, so 12G238F is the perfect choice. It comes with 4*12G-SDI inputs and outputs, can support maximum 8K signal input, allow for multiple configurations of input, 2*HDMI 2.0 inputs, support up to 4096x2160p(60/59.94/50/30/29.97/25/24/23.98) & 3840x2160p(60/50/30/25/24) signal. Corresponding to the refresh of 60 frames per second, 4K audio and video transmission can be solved just over a single cable, reducing costs and ensuring high quality image, bringing you a new visual experience!

12G-SFP Fiber Port
Seamless, high-speed, reliable data communication connection
The monitor comes with SFP interface can insert the 12G-SFP fiber optical module, is an essential part of high-speed telecommunications and data communications, especially in large network environments, which allows for the receiving of broadcast quality transmission level video data over a fiber optic connection. Used by a great many TV broadcasters. Fiber optic input is the industry standard in control room video transfer technology.
Note: optional for the optical module

Remote Control Application
Connect your computer to control the monitor via applications. The RS422 input and output can realize synchronization control of multiple monitors. Real-time control the signal input source of monitor, turn on waveform and other functions.

Multiple Power Options
Long-lasting Power Shooting
The monitor provides XLR connector（12V/5A）, AC power interface, and with mounting points for Sony V-mount battery plate for options.
Note: The V-mount Plate not including, need to purchase separately.

Professional On Set Monitoring Tools
Accurately focus and efficient monitoring
The monitor provides a series professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vectorscope, audio meter, time code, image flip, etc. All of functions can easy to select and operate from menu, also can set shortcut button or via GPI control. Effectively improve the efficiency of on-site shooting and post-production.

Multiple Screen Modes
Perfect choice for multiple camera monitoring
The monitor supports quad view, Quadview triple side , Quadview triple bottom, PBP, PAP multi display mode for optional, one monitor can satisfy multi-camera monitoring.

SDR and HDR Image Comparison Function
Supports HDR mode/Gamma(EOTF)
The monitor can perform SDR and HDR image comparison monitoring in multi-view mode, supports HLG (1.0,1.1, 1.2, 1.3, 1.4, 1.5) mixed log gamma, ST.2084 Dolby Vision PQ, Sony S-log3 HDR, various common gamma and user Gamma LUT upload.

Payload ID Automatically Setting
The monitor can read the Payload ID information of the SDI input signal source, automatically select the color gamut, EOTF (PQ or HLG) curve

3D LUT, Recreate Film Looks
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 9 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 8).

Dynamic UMD
TSL3.1/4.0/5.0 Protocol
12G238F supports UMD of TSL 3.1/4.0/5.0 protocol, 8 letters can be displayed for single channel, let the program producer know at a glance which signal source is being switched.

Three Color Tally Lights
GPI controls Red Tally , Green Tally and Yellow Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.

Professional Audio Meters
The monitor can de-embed audio from SDI and HDMI. Support select any 2 channels audio to output via speaker or 3.5mm headphone jack, maximum support 16 channels display. The audio meters can be displayed vertical or horizontal orientation.

Display Spec.

Model	12G238F
Screen Size	23.8" IPS
Color Depth	10Bit(1.07B)
Resolution	3840×2160 pixels
Pixel pitch	0.1369(W) x 0.1369(V) mm
Aspect Ratio	16:9/4:3
Brightness	540cd/m²
Contrast Ratio	1200:1
Backlight	LED
Viewing Angle	89°/89°(L/R) 89°/89°(U/D)
